JDS Labs EL DAC II+ - Digital-To-Analogue Converter, UK Plug

  • Upgraded edition with optional Bluetooth wireless capabilities and Saber DAC
  • Supports up to 32/384kHz PCM over custom based engine
  • Powered by perfected supply network with external AC transformer
  • Differential summing output is summed by a low noise NJR output stage

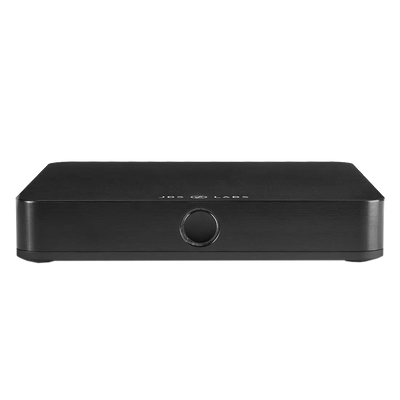

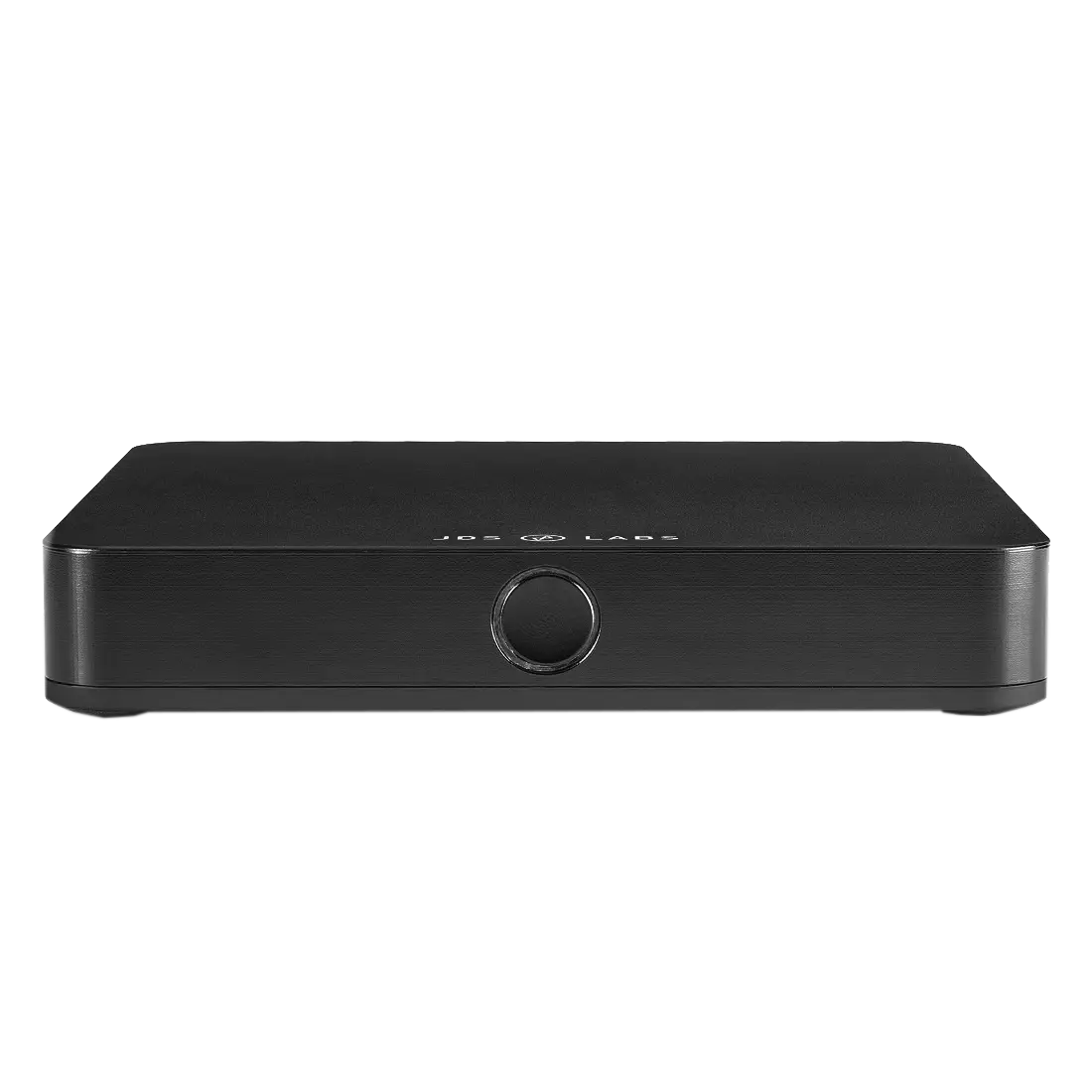

  • Front and centre mode selection via touch-sensitive light ring
  • Manufacturer warranty: 24 months
  • JDS Labs EL DAC II+

    JDS Labs EL DAC II+ transitions EL DAC II from an AKM to an ESS chipset, building upon the same core feature set: relay muting, an XMOS based UAC2 engine, TOSLINK input, and transformer isolated coaxial S/PDIF input. The upgraded ESS chipset achieves higher performance and adds DSD128 support, and for those interested, EL DAC II+ accommodates an optional Bluetooth 5 module.

    EL DAC II+ What's new?

    • Equipped with Higher performance Sabre DAC chip
    • Optional Bluetooth 5 wireless streaming capabilities
    • Enhanced performance metrics
    • 14 regulators ensure consistent rail voltage



    The JDS Labs EL DAC II+ provides pure sound presentation far beyond the standard. Reference level sound output with the lowest possible noise floor and near zero distortion provides studio-grade listening for audio enthusiast that seek pure sound. To achieve single button switching between headphone and speakers the EL DAC II+ can be stacked with JD Labs' EL Amp II+. Externally the uncomplicated design consists of one button for front and centre mode selection through a touch-sensitive light ring.

    Simplified audio, re-engineered.

    Advanced Processing
    Microprocessor controlled relays are standard in EL DAC II+ so that power up and input mode changes are free of audible transients. The USB engine of EL DAC II+ is clocked by an SiTime MEMS oscillator with highest frequency stability, delivering pristine jitter.

    USB Audio Class 2
    EL DAC II+ supports up to 32/384kHz PCM over a custom XMOS XU208 based UAC2 engine. While JDS Labs claim no measurable superiority of high sampling rates, UAC2 and ASIO support satisfy your pursuit of bit-perfect listening.

    Externally Powered
    EL DAC II+ is powered by a perfected supply network, with an external AC transformer and 14 regulators that ensure consistent rail voltage and super low ripple. Never be bothered by USB hubs or OS power difficulties again.

    Differential Summing Output
    Differential output of an ESS Sabre DAC is paired with JDS Labs' unique, DC coupled, precision tuned I/V converter with three stages per channel, or six NJM opamps in total.

    Optional Bluetooth 5
    An optional Bluetooth 5.1 module feeds the received digital audio signal directly to the DAC via S/PDIF, relying on ESS's patented jitter recovery to deliver maximum performance from the wireless transmission.

    Upgradeable Firmware
    Our custom XMOS based firmware configures and manages EL DAC II+'s USB input and DAC, with DFU support for possible future feature additions.

    Technical Specifications

    DAC Performance
    • Frequency Response: 20Hz-20kHz +/- 0.12dB
    • SINAD @ 1kHz: 20Hz-22.4kHz: 112dB
    • THD+N, 20Hz-20kHz: < 0.0004%
    • SNR, 20Hz-20kHz: > 117dB
    • IMD CCIF, 19/20 kHz -6 dBFS: -111 dB
    • Noise, A-Weighted: -109 dBu
    • Dynamic Range, AES17, A-Weighted: > 120 dB
    • Linearity Error -90 dBFS: -0.01 dB
    • Crosstalk, 1kHz, 100k Input: -104 dB
    • USB Jitter Components @ 12kHz: -131 dB
    • Maximum DAC Line-Output, 100K: 2 VRMS
    • PCB Stackup: 4 Layers
    Dimensions
    • Case Dimensions: 5.0 x 5.3 x 1.4 in
    • Weight: 8oz (230g)
    Data Support
    • Audio Formats (USB): 16/44.1kHz thru 32/384kHz PCM
    • Audio Formats (TOSLINK): 16/44.1k thru 24/192k PCM
    • USB Interface: UAC2 with UAC1 Fallback*
    • USB Driver OS Support: Windows 7/8/10, MacOS, Linux, Android, iOS
    • Bluetooth 5.1: SBC, AAC, aptX, aptX HD, aptX Low Latency 2 (Bluetooth mode requires optional BT5 Module)

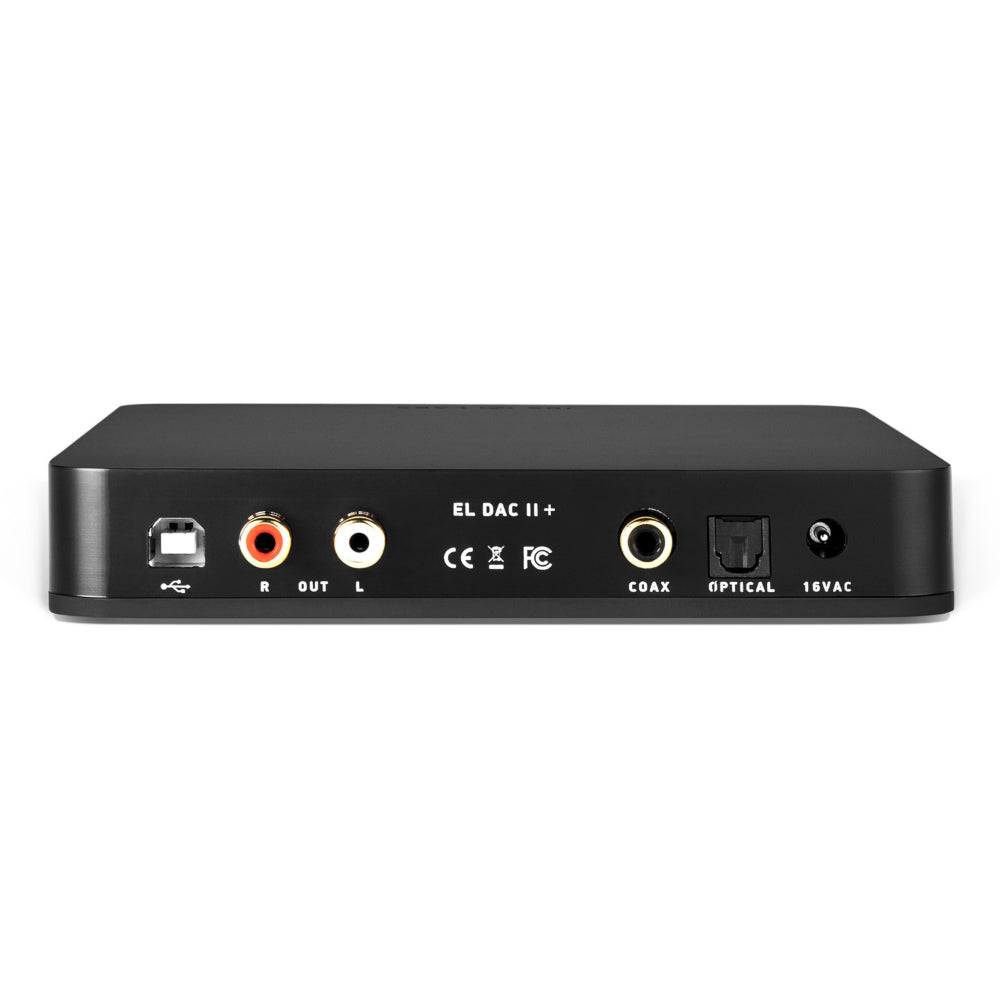

    Connectivity
    • Digital Inputs: USB and TOSLINK
    • Line Output: RCA

    Features

    • Upgraded edition with optional Bluetooth wireless capabilities and Saber DAC
    • Supports up to 32/384kHz PCM over custom based engine
    • Powered by perfected supply network with external AC transformer
    • Differential summing output is summed by a low noise NJR output stage
    • Front and centre mode selection via touch-sensitive light ring

    Package Includes

    • 15VAC Power Adapter ( Plug)
    • USB Type A to Type B Cable w/Ferrite (1m)
    • TOSLINK Cable (2m)
